PHSA Rod Ends

PHSA Rod Ends

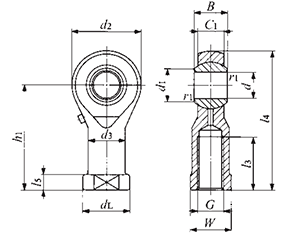

Drawing

Datasheet

Bearing No.	Dimensions													Mass
Bearing No.	d	Thread	d2	C1	B	d1	l4	h1	l3	l5	W	d3	dL
–	mm	G	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	g
PHSA 5	5	M 5×0.8	17	6	8	7.7	35.5	27	16	4	9	9	11	17
PHSA 6	6	M 6×1	19.5	6.75	9	9	39.7	30	16	5	11	10	13	25
PHSA 8	8	M 8×1.25	24	9	12	10.4	48	36	19	5	14	12.5	16	45
PHSA 10	10	M10×1.5	28	10.5	14	12.9	57	43	23	6.5	17	15	19	70
PHSA 12	12	M12×1.75	32	12	16	15.4	66	50	27	6.5	19	17.5	22	105
PHSA 14	14	M14×2	36	13.5	19	16.9	75	57	30	8	22	20	25	155
PHSA 16	16	M16×2	40	15	21	19.4	84	64	36	8	22	22	27	190
PHSA 18	18	M18×1.5	45	16.5	23	21.9	93.5	71	40	10	27	25	31	290
PHSA 20	20	M20×1.5	49	18	25	24.4	101.5	77	43	10	30	27.5	34	400
PHSA 22	22	M22×1.5	54	20	28	25.8	111	84	47	12	32	30	37	500
